The Magic That Converts Every Vibration and Warmth in the World into Energy

A World Without Batteries, The Grand Prelude

Imagine this: your heartbeat powers a pacemaker forever, the tiny vibrations of a car tire check its own condition, and the noisy factory sounds become a 24/7 energy source protecting equipment. It sounds like science fiction, but all this is coming closer to us through the amazing technology called ’energy harvesting.'

Until now, we have “mined” oil from the ground or “generated” electricity at huge power plants. But energy harvesting changes the paradigm. Like a farmer harvesting crops from a field, it “harvests” sunlight, vibrations, heat, and radio waves that have always existed around us but were overlooked.

This story does not see energy harvesting simply as a new eco-friendly energy source. It views it as a ‘foundational technology’—the heart of the Fourth Industrial Revolution—that will power the trillion sensors tightly connecting our world like a spider web. Now, let’s embark together to the center of this quiet revolution. The clearest map of future technology awaits you.

Part 1. Why ‘Energy Harvesting’ Now?

The essence of energy harvesting starts from a small but great idea: embedding ‘distributed ultra-small self-power plants’ into every object. There are two huge reasons why this technology is receiving the strongest attention in history right now.

The Era’s Promise of Sustainability

Billions of batteries discarded every year leave deep scars on our environment. Energy harvesting fundamentally reduces the use of disposable batteries, helping the Earth to no longer suffer. Beyond cost savings, it is a path to fulfilling global commitments like corporate ESG management and carbon neutrality.

The Massive Wave of the Fourth Industrial Revolution

By 2030, 500 billion devices worldwide will be connected to the internet. From smart factories and smart cities to wearable healthcare devices… it is nearly impossible for people to replace batteries one by one. At this point, energy harvesting evolves from a “nice-to-have” technology to an “must-have” technology. Once installed, it becomes a true “install-and-forget” solution—the only answer for a genuinely hyperconnected society.

Part 2. Four Forces Harvesting the Future

The magic of energy harvesting borrows four forces around us. What can we harvest the future with?

1. Mechanical Energy: Movement Is Electricity (Piezoelectric & Triboelectric)

Every movement and vibration is a treasure trove of potential energy.

Piezoelectric Effect: Squeezing Crystals to Extract Electricity

• What is the principle?: When certain materials are pressed or twisted, electricity “pops” out like water squeezed from a sponge.
• How does it work?: A thin piezoelectric film is made into a cantilever beam fixed at one end. When this beam vibrates with ambient vibrations, the film bends and generates electricity. Maximizing these small vibrations to increase efficiency is key.

• Remarkable progress: Previously, lead-based (PZT) materials caused environmental issues, but recently DGIST developed a new, body-safe material (CTO), opening paths for wearable or implantable medical devices. German company EnOcean’s switches send signals to turn on lights just by the mechanical click, already becoming a standard in smart buildings.

Triboelectric Effect: The Spectacular Transformation of Static Electricity

• What is the principle?: Remember rubbing a ruler on your hair as a child and the hair sticking up? This static electricity principle is controlled with nanotechnology to generate much larger energy.
• How does it work?: Repeatedly sticking and peeling two different films creates positive and negative charges on each film. This force moves electrons around to generate electricity. The key technology is making the film surface nanoscopically rough to increase contact area hundreds of times.
• Applications?: Still mostly in research, but it promises high voltage from cheap materials, with great expectations in “blue energy” that generates electricity from wave motion and smart clothing that charges smartphones from fabric movement.

2. Thermal Energy: Temperature Difference Is Energy (Thermoelectric)

Everywhere there is a temperature difference—between hot coffee and a cold desk, or your warm hand and cool outside air—becomes a power plant.

• What is the principle? (Seebeck Effect): When two different semiconductors are joined and one side is hot and the other cold, electricity flows proportional to the temperature difference. It uses the force of heat energy moving from hot to cold.

• How does it work?: Pieces of p-type and n-type semiconductors are alternately connected like a sandwich to form a module (TEG). One side faces a hot source (engine, factory waste heat, human skin), the other a cold sink (heat sink, air). The small voltages generated add up to usable power.
• Remarkable progress: From recycling hot waste heat at steel plants to increasing car fuel efficiency by 5% using exhaust heat, research is active. A Swiss startup developed technology to power smartwatches with just a 1–2°C difference between body heat and air, nearing commercialization.

3. Light Energy: The Most Powerful and Reliable Friend (Photovoltaic)

Solar energy is the strongest, most predictable, and most familiar energy source to us.

• What is the principle? (Photoelectric Effect): Photons hitting a semiconductor awaken dormant electrons, making them move. This electron flow becomes electric current.
• How does it work?: When light hits, electrons move toward the n-type semiconductor, and the holes left behind move toward the p-type semiconductor. This charge separation creates voltage and current.
• Remarkable progress: Traditional silicon solar cells worked well only under bright sunlight, but now next-generation cells like organic photovoltaics (OPV) with good indoor efficiency and perovskite solar cells that are cheap and efficient are emerging. Garmin’s smartwatches use transparent solar charging lenses (Power Glass™) on the watch face, allowing worry-free outdoor activity.

4. Electromagnetic Wave Energy: Fishing Energy from the Air (RF)

Invisible to the eye, our surroundings are filled with Wi-Fi, 5G, and broadcast radio waves. These waves contain faint energy.

• What is the principle?: Capturing radio waves floating in the air with an antenna and converting them into DC electricity.
• How does it work?: The core is the ‘rectenna’—a component combining an antenna that captures radio waves and a rectifier that converts AC signals to DC. When the antenna catches weak radio waves, the rectifier converts them into usable electricity.

• Remarkable progress: Technologies harvesting multiple frequency bands simultaneously are being developed. US company Powercast commercialized technology that wirelessly charges multiple sensors from several meters away. Perfect for tracking warehouse items or electronic price tags in stores where battery replacement is inconvenient.

Part 3. Market Pulse: Who Will Dominate the Future?

The energy harvesting market is growing rapidly at over 10% annually and is expected to reach about $3 billion by 2032. Especially, Industrial IoT (IIoT) and smart buildings are driving growth.

• North America (Leader): The largest market globally, leading with high acceptance of advanced technology and a strong semiconductor industry.
• Europe (Policy-driven): Thanks to strong eco-friendly policies like the ‘European Green Deal,’ it stands out in zero-energy buildings and smart home sectors.
• Asia-Pacific (Growth engine): The fastest growing region. Massive smart city projects in China and India create tremendous opportunities.

Where Does South Korea Stand?

South Korea is somewhat special. Though the market size is small, its R&D capabilities led by KIST, KAIST, and others are world-class. Technologies like Hyundai Motor’s solar roof system and CoaChips’ industrial self-powered sensors already demonstrate global competitiveness. Our strategy is clear: a ‘Born Global’ strategy that solves major problems in the largest overseas markets with world-best technology.

Part 4. Cutting-Edge Technologies Turning Imagination into Reality

In labs, amazing innovations continue to change the future of energy harvesting.

1. Revolution in Materials: Wearable and Implantable Energy Sources

Moving away from rigid parts, materials are evolving into soft, stretchable forms like skin. Stretchable thermoelectric devices and body-safe piezoelectric films open the era of wearable and implantable technologies, creating new markets like athletes’ uniforms and permanent pacemakers.

2. Breaking Efficiency Limits: Hybrids and Metamaterials

• Hybrid technology (1+1 > 2): In places where heat and vibration coexist, harvesting both simultaneously increases efficiency by over 50%. Technologies that generate power from sunlight by day and raindrop impacts on rainy days become possible.
• Metamaterial technology: Like a magnifying glass focusing light, this new material concentrates widely spread tiny vibration energy into a single point. Thanks to this, even a single small device can harvest large energy, drastically reducing cost and size.

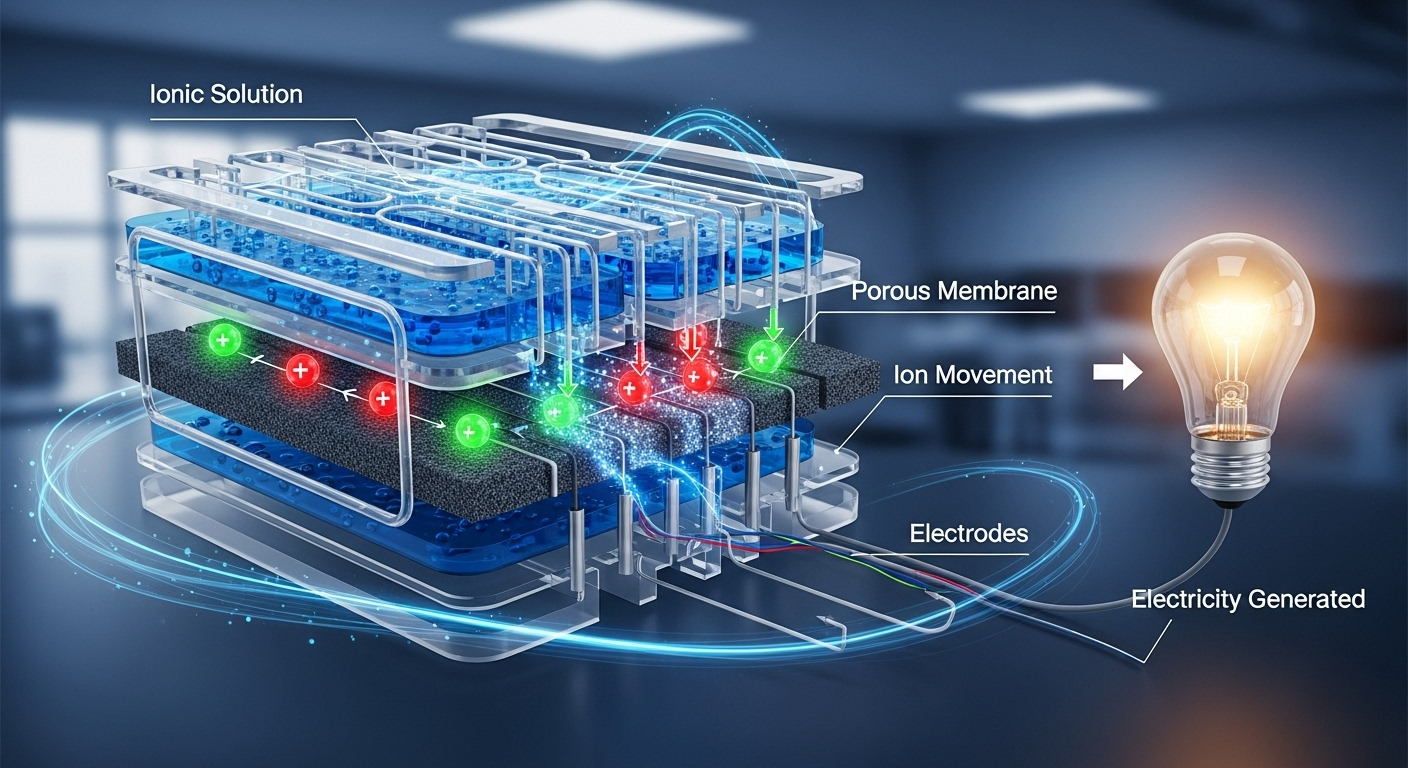

3. New Discovery: Harnessing the Power of Ions

KAIST developed a new method generating electricity using the movement of ‘ions’ instead of electrons. This technology produces a long, steady current rather than short, strong pulses, making it much better for powering actual devices. It is attracting attention as a technology that will elevate wearable device practicality to the next level.

Part 5. Unsung Heroes: Impossible Without Them

No matter how good the seed, it’s useless without proper management and storage. The same goes for energy harvesting. Only with the ‘unsung heroes’ managing and storing tiny energy can the system be complete.

The Brain of the System, Power Management IC (PMIC)

Harvested energy is like crude oil—too low and irregular voltage to use directly. PMIC is the ’energy refinery’ that purifies this crude into clean, stable fuel. It uses almost no energy itself (ultra-low quiescent current), can restart from a fully depleted state with tiny energy (cold start), and always extracts maximum energy (MPPT), acting as a smart brain.

Energy Storage, Energy Storage System (ESS)

To keep the system running when sunlight is gone or vibrations stop, an ’energy bank’ is needed to temporarily store energy. Large-capacity rechargeable batteries and supercapacitors with very fast charge/discharge and nearly infinite lifespan are mainly used. Choosing the optimal combination for the application is crucial.

Key Insight: Future competitiveness lies not just in making good devices. The winner in the market will be those with ‘integrated solution’ capabilities that fully understand and optimize the entire system from device to PMIC, ESS, and sensor.

Part 6. Success Stories Turning the Future into Reality

• Automotive (Hyundai Motor Group): Proved energy harvesting value by driving 1,500 km more annually with the solar roof and extending electric vehicle range using waste heat as a heater with a heat pump.
• Wearables (Garmin): Solved the wearable device’s “battery anxiety” with Power Glass™ technology, winning outdoor enthusiasts’ hearts.
• Smart Buildings (EnOcean): The wireless switch operating just by pressing the switch eliminated wiring and battery replacement, opening an era of zero maintenance costs.
• Industrial IoT (CoaChips): Self-powered sensors running on factory vibrations and heat easily transform old equipment into smart factories, accelerating the era of data-driven predictive maintenance.

Part 7. The Final Hurdle and Strategies for the Future

Of course, challenges remain. Energy output is still low, balancing efficiency and cost is necessary, and durability and standardization issues must be solved. But we are finding answers.

• Hybridization and system integration: Using multiple energy sources together and smartly combining with PMIC/ESS is the most practical solution.
• Innovation in material science: New materials like metamaterials and perovskites will fundamentally break technological limits.
• Meeting with AI: AI will predict and optimize energy production, storage, and consumption to maximize efficiency.
• Customized design: Instead of “one-size-fits-all” technology, designs perfectly optimized for specific industrial environments will be the key to opening initial markets.

The Sustainable Energy Future Seeping Into Our Lives

Energy harvesting is no longer a distant dream. It is the core driving force completing the IoT era and opening a sustainable future. In the short term, it will be used in industrial sites and smart buildings; mid-term, in wearables and automobiles; and long-term, it will create a world where entire cities become giant power plants.

The winner of this great journey will not be the one with the best parts but the one providing ‘integrated solutions’ covering everything from materials to systems. Will we awaken the sleeping energy and open an eternally connected future, or fall behind the massive wave of change? The choice is now in our hands.
